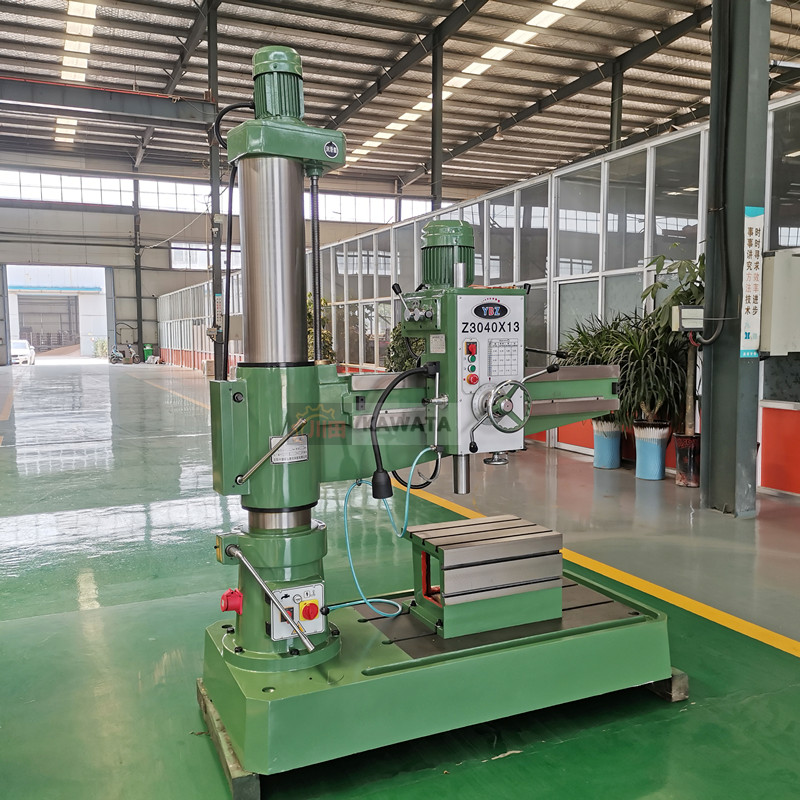

摇臂钻床广泛应用于单件和中小批生产中,加工体积和重量较大的工件的孔。摇臂钻床加工范围广,可用来钻削大型工件的各种螺钉孔、螺纹底孔和油孔等。摇臂钻床用于加工笨重工件或多孔工件上的中小型孔。
Rocker drilling machine is widely used in single and small batch production, processing large volume and weight workpiece holes. Rocker drilling machine has a wide range of processing, which can be used to drill various screw holes, thread bottom holes and oil holes of large workpieces. Rocker drilling machine is used to process small and medium-sized holes on heavy workpieces or multi-hole workpieces.

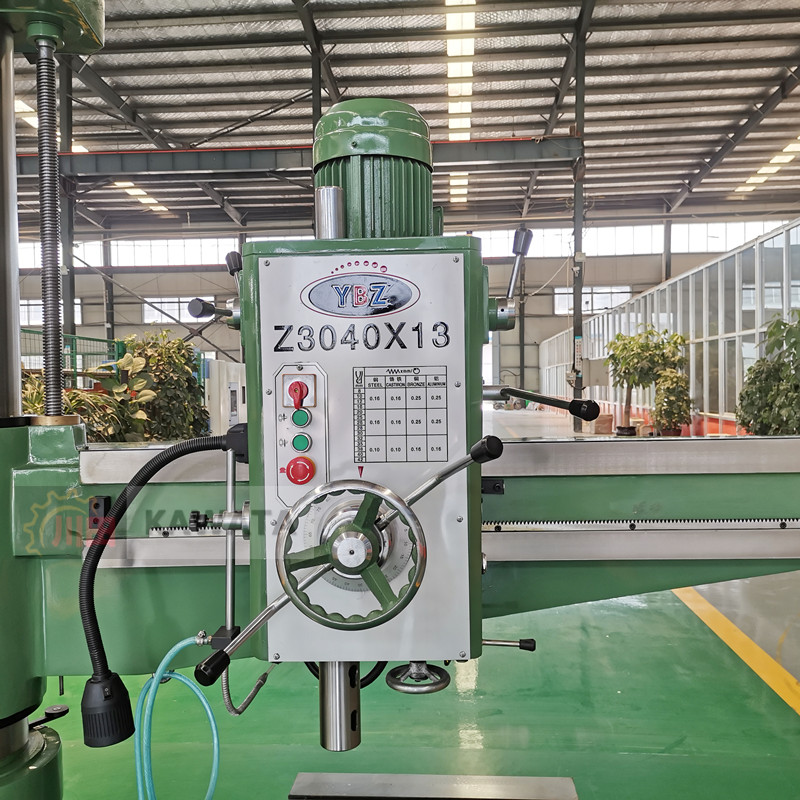

参数项目 | Z3040×13A |
最大孔直径mm | 40 |
主轴端面至工作台距离mm | 260-1000 |
主轴中心至立柱母线距离mm | 360-1300 |
主轴行程mm | 200 |
主轴锥孔(莫氏) | 4 |
主轴转速范围r.p.m | 34-1220 |
主轴转速级数 | 6 |
主轴进给量范围r.p.m | 0.10-0.25 |
主轴进给量级数 | 3 |
摇臂回转角度° | 360 |
主轴电机功率 | 2.2 |
升降电机功率 | 1.5 |
机床重量kg | 1800 |
外形尺寸mm | 1920×810×2300 |
