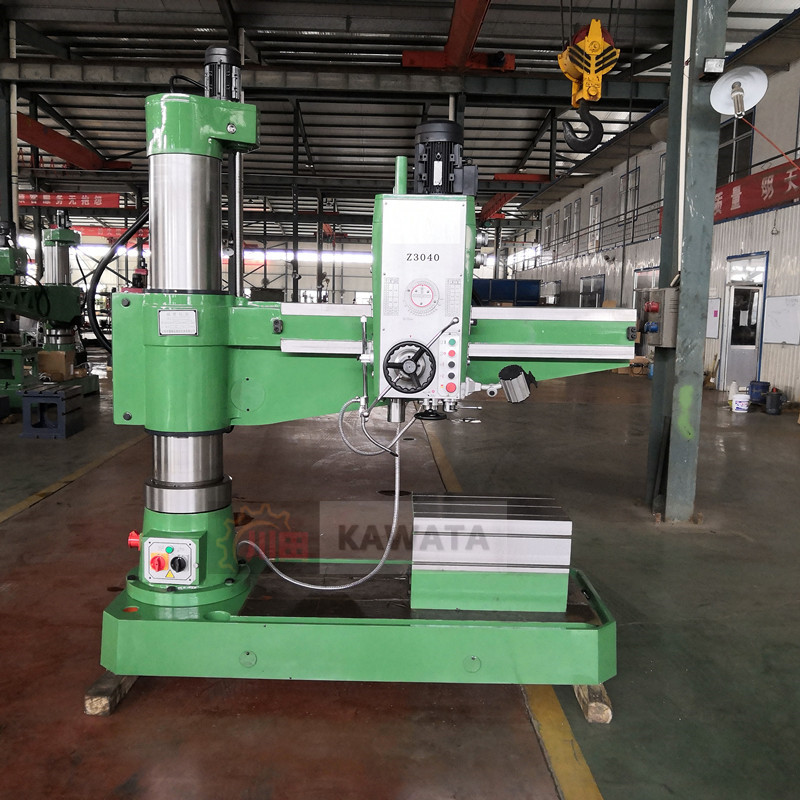

摇臂钻床广泛应用于单件和中小批生产中，加工体积和重量较大的工件的孔。摇臂钻床加工范围广，可用来钻削大型工件的各种螺钉孔、螺纹底孔和油孔等。摇臂钻床用于加工笨重工件或多孔工件上的中小型孔。
Rocker drilling machine is widely used in single and small batch production, processing large volume and weight workpiece holes. Rocker drilling machine has a wide range of processing, which can be used to drill various screw holes, thread bottom holes and oil holes of large workpieces. Rocker drilling machine is used to process small and medium-sized holes on heavy workpieces or multi-hole workpieces.
主要技术参数 | SPECIFICATIONS | Z3040X14/1 |
钻孔大直径(mm) | Max. drilling dia(mm) | 40 |
主轴线至立柱母线距离(mm) | Spindle center to column generating distance | 350-1370 |
主轴箱水平移动距离(mm) | Distance headstock horizontal movement(mm) | 1015 |
主轴下端面至底工作台面距离(mm) | Distance from spindle nose to table surface(mm) | 260—1210 |
主轴锥孔（莫氏） | Spindle Cone | 4 |
主轴转速级数 | Spindle speed series | 16 |
主轴转速范围(r.p.m) | Range of spindle speeds(r.p.m) | 32-2500 |
主轴行程(mm) | Spindle travel(mm) | 270 |
主轴进给量级数 | Spinde feeding step | 8 |
主轴进给量范围(r.p.m) | Spinde feeding range(r.p.m) | 0.10-1.25 |
摇臂升降速度(mm/m) | Rocker Lifting speed （m/min） | 1.27 |
摇臂回转角度° | Rocker rotary angle | ±180° |
主轴允许大进给力(N) | Maximum resistance to the spindle(N) | 12250 |
主电机功率(kw) | Main motor power (kw) | 3 |
升降电机功率(kw) | Movements motor power(kw) | 0.75 |
机床重量（kg) | Machine weight | 2200 |
外形尺寸（mm) | Overall dimensions(mm) | 2053x820x2483 |
