技术参数

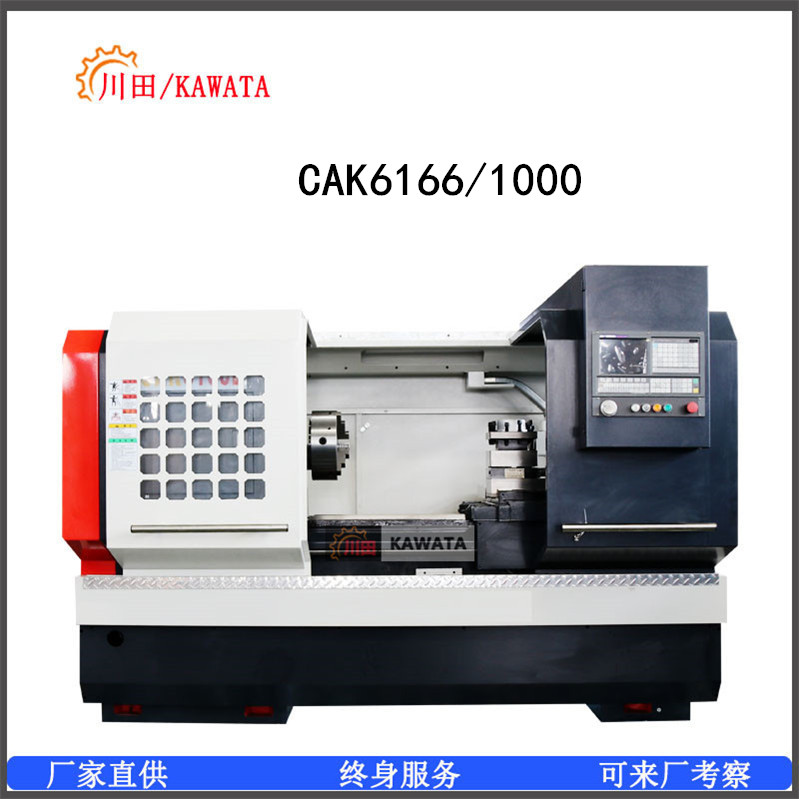

CAK6166

床身最大工件直径

660mm

床身上最大工件长度

750/1000/1500/2000/3000mm

主轴孔锥度

莫氏No.6MT6[Φ90 1:20(B型)][Φ113 1:20(C型)]

卡盘规格

C6 [D8(B型C型)]

主轴通孔直径

Φ52mm[Φ80mm (B型)][Φ105mm (C型)]

转速范围

三档自动变速

21-1620rpm(I 162-1620 II 66-660 III 21-210)

尾座顶尖行程

150mm

尾座套筒锥度

MT5

定位精度

+-0.015mm

重复定位精度

+-0.006mm

快移速度

4/6m/min

电机功率

7.5kw

包装尺寸

Packing dimensions

(L×W×H mm)

Overall dimensions for 750

2550×1550×1900mm

Overall dimensions for 1000

2750×1550×1900mm

Overall dimensions for 1500

3250×1550×1900mm

Overall dimensions for 2000

3700×1550×1900mm

Overall dimensions for 3000

4710×1550×1900mm

重量

Weight(kg)

Length

净重N.W./毛重G.W.

Overall dimensions for 750

2300/2900

Overall dimensions for 1000

2450/3050

Overall dimensions for 1500

2650/3250

Overall dimensions for 2000

2880/3450

Overall dimensions for 3000

3700/4300
